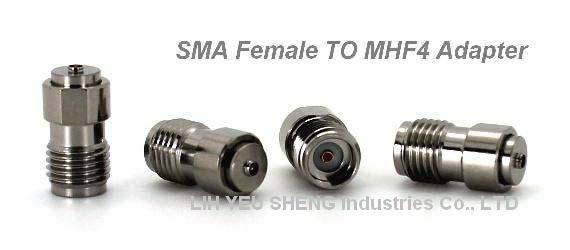

RF Adapter // SMA Female TO MHF4
2012.05.19
Product Information
|
P/No.： |
SMA90M(Ni) |
| Frequency Range： |
DC-6GHz |
| Impendance： | 50Ω |
| Electric Performance： |
VSWR 1.2 Max. |
|
Durability： |
1000 Cycles Min. (for MHF4) |
| Patent： |
Air Insulator Design |
| Working Voltage： | 170 Vrms |
| Deilectric Withstanding Voltage： |
1000 Vrms |
| Insulator Resistance： |
5000 MEGOHMS |
| Finished： |
Body Electorless Nickel / Contact Gold 20μ |
|
Application： |
I-PEX Ⅳ, Murata Ⅳ, ... etc. |

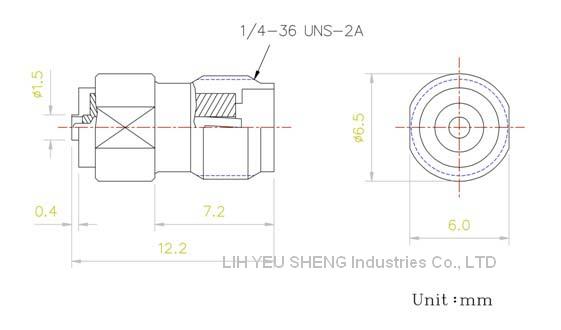

Drawing
Perfromance

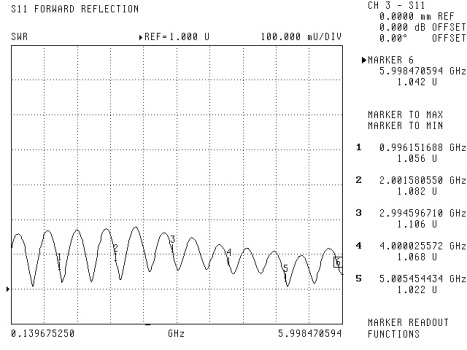

Ⅰ. S11 / VSWR

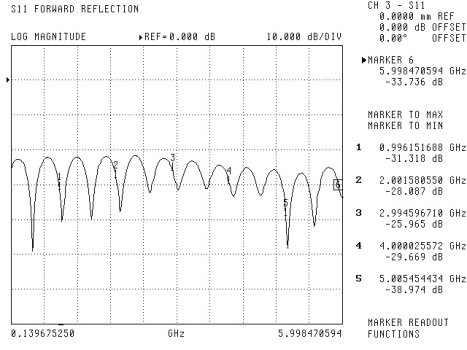

Ⅱ. S11 / IL
