產品項目
- (P / NO)
- SPEC.

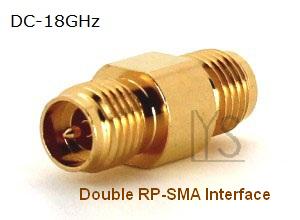

- RP-SMA Female To RP-SMA Female Straight Adaptor
- LYS CLASS NO.
- SMA90A2/1H
- PATENT
- Air Insulator
| 立宇盛工業股份有限公司 | ||
| ※ Product Info. | ||
| 產 品 編 號 | 總長度 | 中心針規格 |
| SMA90A2/1H | 17.1mm | Male vs. Male |
| ※ Common Info. | |||
| 阻抗 | 主體材質 | 電鍍/主體 | 電鍍/中心針 |
| 50Ω | 黃 銅 |
鍍金 10u" |
鍍金 30u" |
| VSWR | 頻 率 | 環 境 溫 度 | |
| 1.45 Max. | 0-18.0GHz | -65℃ ~ +155 ℃ | |
| ◎ The green patented product is with great performance and competitive price. | |||
RP-SMA Female To RP-SMA Female Straight Adaptor
