產品項目
- (P / NO)
- SPEC.

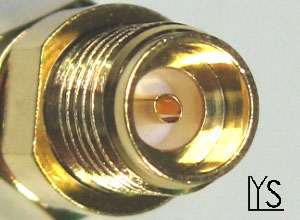

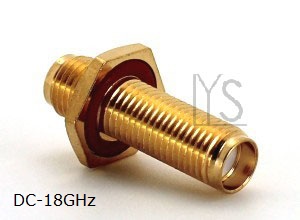

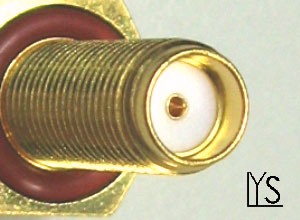

- SMA Female To SMA Female Bulkhead With O-Ring Adaptor
- LYS CLASS NO.
- SMA82A/1H
- PATENT
- Air Insulator
| 立宇盛工業股份有限公司 | ||||
| ※ Product Info. | ||||
| 產 品 編 號 | 總長度 | 螺牙長度 | 中心針規格 | 防水等級 |
| SMA82A/1H | 22.1mm | 14.5mm | Female vs. Female | IP67 |
| ※ Common Info. | |||
| 阻抗 | 主體材質 | 電鍍/主體 | 電鍍/中心針 |
| 50Ω | 黃 銅 |
鍍金 10u" |
鍍金 30u" |
| VSWR | 頻 率 | 環 境 溫 度 | |
| 1.25 Max. | 0-18.0GHz | -65℃ ~ +155 ℃ | |
| ◎ The green patented product is with great performance and competitive price. | |||
SMA Female To SMA Female Bulkhead With O-Ring Adaptor
